■ Outline dimension

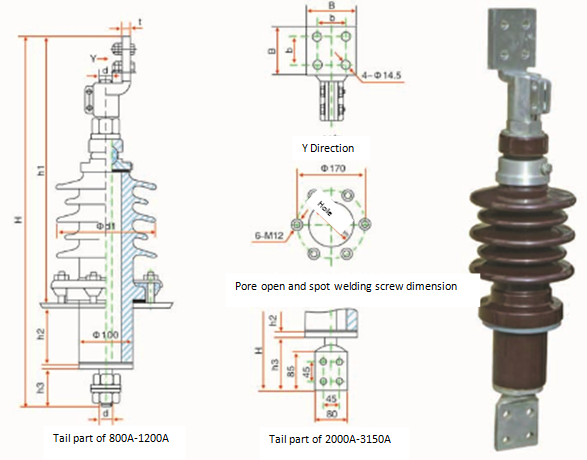

■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
Creep age Distance (mm) |
Weight Kg |
||||||||
|
H |
h1 |
h2 |
h3 |
d |
d1 |
B |
b |
t |
|
||||
|
WT.0800.10 |
BD-10/800 |
610 |
446 |
114 |
38 |
M24 |
150 |
80 |
40 |
12 |
Single Umbrella |
320 |
10 |
|
WT.1000.10 |
BD-10/1000 |
612 |
446 |
114 |
40 |
M30 |
150 |
80 |
40 |
12 |
Single Umbrella |
320 |
12 |
|
WT.1200.10 |
BD-10/1200 |
617 |
446 |
114 |
45 |
M33 |
150 |
80 |
40 |
12 |
Single Umbrella |
320 |
13 |
|
WT.2000.10 |
BD-10/2000 |
727 |
496 |
114 |
105 |
Φ42 |
150 |
100 |
50 |
16 |
Single Umbrella |
320 |
17 |
|
WT.3150.10 |
BD-10/3150 |
727 |
496 |
114 |
105 |
Φ48 |
150 |
100 |
50 |
16 |
Single Umbrella |
320 |
20 |
|
WT.0800.20 |
BD-20/800 |
650 |
486 |
114 |
38 |
M24 |
160 |
80 |
40 |
12 |
Single Umbrella |
340 |
12 |
|
WT.1000.20 |
BD-20/1000 |
652 |
486 |
114 |
40 |
M30 |
160 |
80 |
40 |
12 |
Single Umbrella |
340 |
13 |
|
WT.1200.20 |
BD-20/1200 |
657 |
486 |
114 |
45 |
M33 |
160 |
80 |
40 |
12 |
Single Umbrella |
340 |
14 |
|
WT.2000.20 |
BD-20/2000 |
767 |
536 |
114 |
105 |
Φ42 |
160 |
100 |
50 |
16 |
Single Umbrella |
340 |
19 |
|
WT.3150.20 |
BD-20/3150 |
767 |
536 |
114 |
105 |
Φ48 |
160 |
100 |
50 |
16 |
Big and small umbrellas |
340 |
21 |
|
WT.0800.20.DW |
BDW-20/800 |
650 |
486 |
114 |
38 |
M24 |
160 |
80 |
40 |
12 |
Big and small umbrellas |
480 |
14 |
|
WT.1000.20.DW |
BDW-20/1000 |
652 |
486 |
114 |
40 |
M30 |
160 |
80 |
40 |
12 |
Big and small umbrellas |
480 |
15 |
|
WT.1200.20.DW |
BDW-20/1200 |
657 |
486 |
114 |
45 |
M33 |
160 |
80 |
40 |
12 |
Big and small umbrellas |
480 |
16 |
|
WT.2000.20.DW |
BDW-20/2000 |
767 |
536 |
114 |
105 |
Φ42 |
160 |
100 |
50 |
16 |
Big and small umbrellas |
480 |
21 |
|
WT.3150.20.DW |
BDW-20/3150 |
767 |
536 |
114 |
105 |
Φ48 |
160 |
100 |
50 |
16 |
Big and small umbrellas |
480 |
23 |
